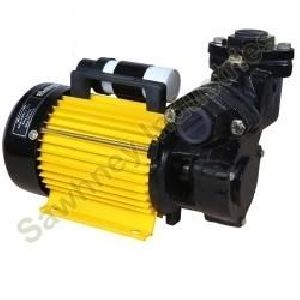

Thunder Self Priming Monoblock Pump
| Business Type | Manufacturer, Supplier, Retailer, Wholesaler |
| Power | 0.75KW/1.0HP |
| Application | Water Supply |
| Theory | Self Priming Pump |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Pressure
High Pressure
Structure
Single Stage Pump
Model Name
Thunder
Voltage
240 V
Head Range
5-45 m
Technical Specification
| Technical Specification | |||||||||||||
| Model name | KW/HP | Max. Current | Pipe Size | Total Head in Meters | |||||||||
| 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | ||||
| Discharge in Liters per hour (LPH) | |||||||||||||
| Thunder | 0.75/1.0 | 6.5 Amp | 25x25 mm | 3500 | 3200 | 2850 | 2500 | 2200 | 1950 | 1650 | 1350 | 1000 | 650 |
Note
- All performance data & technical specifications given above are based on our lab tests conducted at rated supply of 240 V, 50 Hz.
- Due to continuous efforts in improvements, information furnished above is subject to change without notice.
